CHIP DRYER for POLYESTER AND POLYAMIDE

VB-DRYPET is a compact crystallizer and dryer where PET crystallization and drying happen in the same drying hopper.

It is based on counter-current air flow on the drying vessel. The Polymer chip is slowly stirred on its whole length.
Its design makes VB-DRYPET an ideal machine to be installed directly on top of the extruder.

  • Small and compact
  • Stirring shaft working on the machine whole length
  • Heated dry air supplied from the bottom and uniformly distributed on the machine section
  • Heated air flow from bottom to the top
  • Heated air up to 180°C
  • Equipped with a dry air generator working in close loop for low energy consumption and low running costs
  • Using dry air generators with constant dew point -40°C and lower
  • Low energy cost
  • Easy maintenance
  • User-friendly HMI

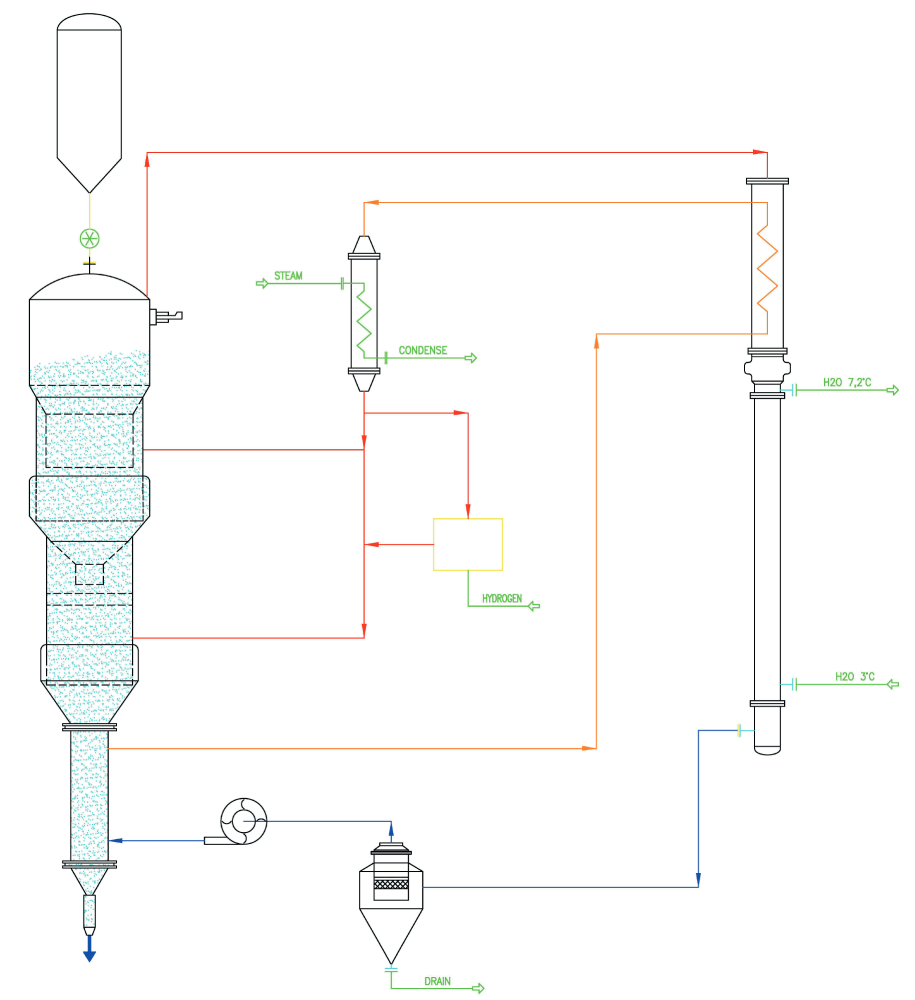

    Chip dryer design schema
    crystallizer and dryer where PET crystallization and drying happen in the same drying hopper

    VB-DRYPAM is a compact dryer for POLYAMIDE 6 and POLYAMIDE 66 based on nitrogen counter-current flow on the drying vessel.
    Nitrogen is fully recovered in closed loop, for low energy consumption and low running cost.



    • Available in compact design
    • Heated nitrogen air supplied from the bottom and uniformly distributed on the machine section
    • Heated nitrogen flow from bottom to the top
    • Heated nitrogen up to 130°C
    • Equipped with a nitrogen dryer working in a closed loop for low energy consumption and low running costs
    • Dew point analyser to keep dew point constant during the drying process
    • Low energy costs
    • Easy maintenance
    • User-friendly HMI
